The RPC datasource connects Forest back-ends to each other over RPC (Remote Procedure Call). Use it to expose a remote data source in your back-office, or to split one back-end across multiple services (microservices) that a main back-end aggregates into a single admin panel.

​
Node.js

In Node.js, the RPC datasource connects to a remote data source and exposes its data and operations in your back-office.
npm install @forestadmin-experimental/datasource-rpc

import { createAgent } from '@forestadmin/agent';
import { createRpcDataSource } from '@forestadmin-experimental/datasource-rpc';

const agent = createAgent(options);

agent.addDataSource(
  createRpcDataSource({
    url: process.env.RPC_SERVER_URL,
  }),
);

​
Ruby (distributed back-ends)

In Ruby, the RPC datasource lets you distribute your Forest back-end across multiple microservices. Each service runs its own RPC back-end, and a main back-end aggregates them into a unified admin panel. Why use RPC?
  • Microservices architecture: your application is split into multiple services, each owning its data.
  • Team isolation: each team manages their own Forest configuration.
  • Independent deployment: update one service without redeploying the entire admin panel.
  • Scalability: distribute load across multiple agents.

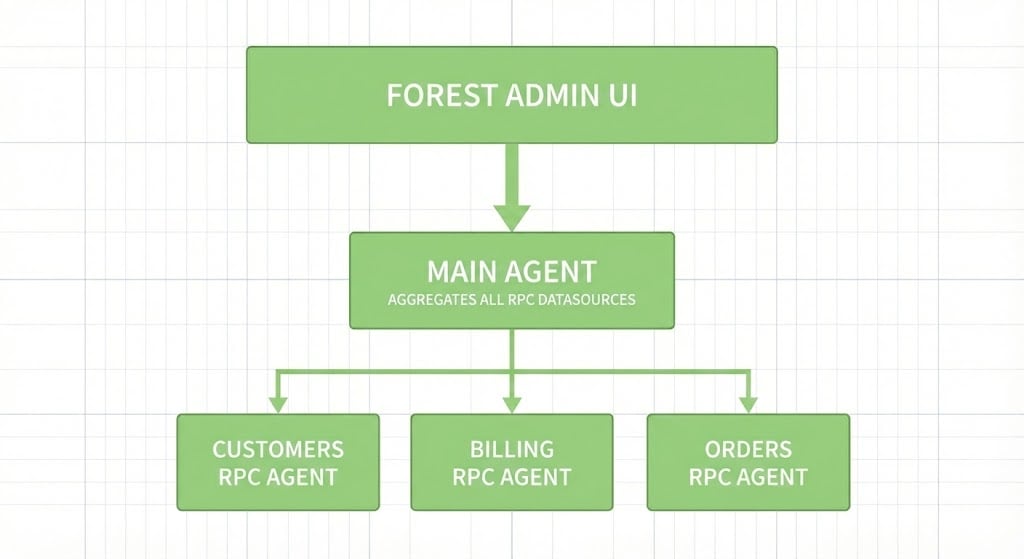

RPC architecture: a main agent connected to several RPC agents

​
Main back-end

The main back-end aggregates multiple RPC back-ends into a single Forest interface. It behaves exactly like a classic back-end with multiple datasources: once connected, you can define relations across datasources transparently.
# Gemfile
gem 'forest_admin_datasource_rpc'

# app/lib/forest_admin_rails/create_agent.rb
module ForestAdminRails
  class CreateAgent
    def self.setup!
      @agent = ForestAdminAgent::Builder::AgentFactory.instance

      # Add RPC datasources
      @agent.add_datasource(
        ForestAdminDatasourceRpc.build(uri: 'http://customers-app:3002')
      )

      @agent.add_datasource(
        ForestAdminDatasourceRpc.build(
          uri: 'http://billing-app:3003',
          auth_secret: 'YOUR-SHARED-AUTH-SECRET'
        )
      )

      # You can also add local datasources
      @agent.add_datasource(ForestAdminDatasourceMongoid.build)

      @agent.use(ForestAdminDatasourceRpc::ReconciliateRpc)

      @agent.build
    end
  end
end
The auth_secret option is optional. If not specified, it defaults to your Forest project’s auth_secret. Override it to use a different shared secret for RPC communication.
The ReconciliateRpc plugin must be added in the main back-end. It relies on collection names matching across all back-ends, so if you rename collections in your RPC back-ends, keep all back-ends synchronized.

​
Introspection caching

By default, the main back-end introspects each RPC back-end at startup. Caching the introspection schema makes startup faster, lets the main back-end boot even if an RPC back-end is temporarily unavailable, and supports asynchronous deployments. RPC back-ends automatically generate a .forestadmin-rpc-schema.json file in development mode; pass it when adding a datasource:
schema = JSON.parse(
  File.read(Rails.root.join('.forestadmin-rpc-schema.json')),
  symbolize_names: true
)

@agent.add_datasource(
  ForestAdminDatasourceRpc.build(
    uri: 'http://customers-app:3002',
    introspection: schema
  )
)
Regenerate the cached schema when an RPC back-end’s collections change.

​
RPC back-end

An RPC back-end exposes its collections to the main back-end via the RPC protocol.
# Gemfile
gem 'forest_admin_rpc_agent'
Run the installation command with the auth_secret from your main Forest project:
forest_admin_rpc_agent install YOUR_AUTH_SECRET
This creates config/initializers/forest_admin_rpc_agent.rb, lib/forest_admin_rpc_agent/create_rpc_agent.rb, and mounts the RPC routes in config/routes.rb. The generated back-end looks like:
module ForestAdminRpcAgent
  class CreateRpcAgent
    def self.setup!
      datasource = ForestAdminDatasourceActiveRecord::Datasource.new(Rails.env.to_sym)
      @agent = ForestAdminRpcAgent::Agent.instance.add_datasource(datasource)

      @agent.build
    end
  end
end
You can use all standard customization methods (computed fields, actions, segments, etc.) on your RPC back-end collections.

​
Cross-RPC relations

When an RPC back-end needs to reference collections from another RPC back-end, import them by adding an RPC datasource that references the other back-end, then use mark_collections_as_rpc: true to indicate those collections are provisioned elsewhere.
module ForestAdminRpcAgent
  class CreateRpcAgent
    def self.setup!
      # 1. Local datasource
      datasource = ForestAdminDatasourceActiveRecord::Datasource.new(Rails.env.to_sym)
      @agent = ForestAdminRpcAgent::Agent.instance.add_datasource(datasource)

      # 2. Remote RPC datasource, marked as RPC
      @agent.add_datasource(
        ForestAdminDatasourceRpc.build(uri: 'http://customers-app:3002'),
        mark_collections_as_rpc: true
      )

      # 3. Cross-RPC relations (here in the Billing agent:
      #    'Invoice' is local, 'User' is imported from the Customers agent)
      @agent.customize_collection('Invoice') do |collection|
        collection.add_many_to_one_relation(
          'user', 'User', { foreign_key: 'user_id', foreign_key_target: 'id' }
        )
      end

      @agent.customize_collection('User') do |collection|
        collection.add_one_to_many_relation(
          'invoices', 'Invoice', { origin_key: 'user_id', origin_key_target: 'id' }
        )
      end

      @agent.build
    end
  end
end
For finer control over which collections are marked, call mark_collections_as_rpc manually:
# Mark specific collections
@agent.mark_collections_as_rpc('User', 'Address')

# Or use a regex to match a pattern of collections
@agent.mark_collections_as_rpc(/^admin_/)
Supported cross-RPC relation types: add_many_to_one_relation, add_one_to_many_relation, add_one_to_one_relation, and add_many_to_many_relation.

​
Source code

This connector is open source. Browse the code or contribute on GitHub:
