Create an API-based Chart - Forest Documentation

Creating an API-based Chart

Sometimes, charts data are complicated and closely tied to your business. Forest allows you to code how the chart is computed. Choose API as the data source when configuring your chart.

Forest will make the HTTP call to Smart Chart URL when retrieving the chart values for the rendering.

Value API-based Chart

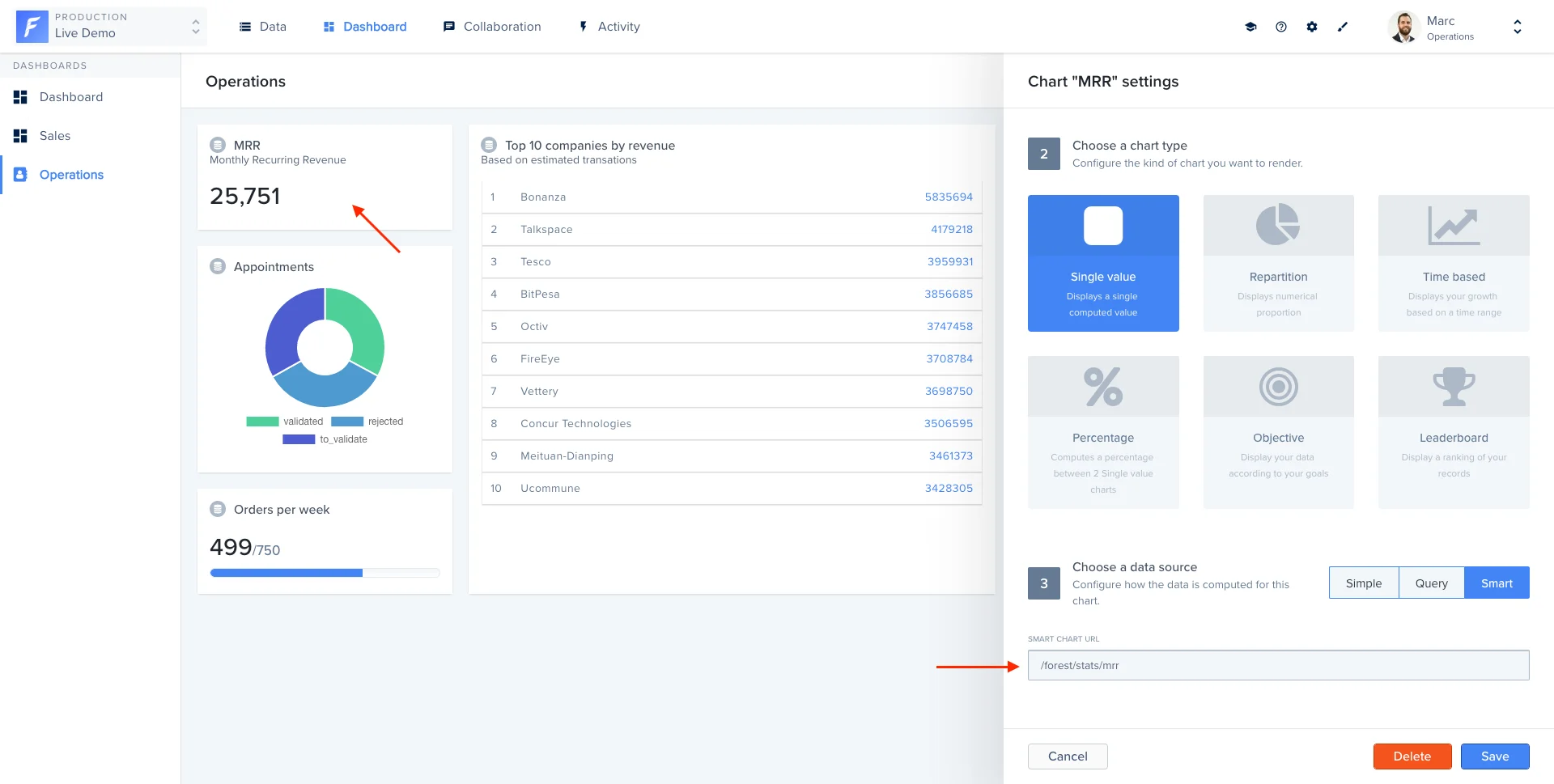

On our Live Demo, we have a MRR value chart which computes our Monthly Recurring Revenue. This chart queries the Stripe API to get all charges made in the current month (in March for this example).

SQL
Mongoose
Rails

When serializing the data, we use the Liana.StatSerializer() serializer. Check the value syntax below.

{ value: <number> }

const P = require('bluebird');
const express = require('express');
const router = express.Router();
const Liana = require('forest-express-sequelize');
const stripe = require('stripe')(process.env.STRIPE_SECRET_KEY);
const moment = require('moment');

...

router.post('/stats/mrr', (req, res) => {
  let mrr = 0;

  let from = moment.utc('2018-03-01').unix();
  let to = moment.utc('2018-03-31').unix();

  return stripe.charges
    .list({
      created: { gte: from, lte: to }
    })
    .then((response) => {
      return P.each(response.data, (charge) => {
        mrr += charge.amount;
      });
    })
    .then(() => {
      let json = new Liana.StatSerializer({
        value: mrr
      }).perform();

      res.send(json);
    });
});

...

module.exports = router;

When serializing the data, we use the Liana.StatSerializer() serializer. Check the value syntax below.

{ value: <number> }

const P = require('bluebird');
const express = require('express');
const router = express.Router();
const Liana = require('forest-express-mongoose');
const stripe = require('stripe')(process.env.STRIPE_SECRET_KEY);
const moment = require('moment');

...

router.post('/stats/mrr', (req, res) => {
  let mrr = 0;

  let from = moment.utc('2018-03-01').unix();
  let to = moment.utc('2018-03-31').unix();

  return stripe.charges
    .list({
      created: { gte: from, lte: to }
    })
    .then((response) => {
      return P.each(response.data, (charge) => {
        mrr += charge.amount;
      });
    })
    .then(() => {
      let json = new Liana.StatSerializer({
        value: mrr
      }).perform();

      res.send(json);
    });
});

...

module.exports = router;

When serializing the data, we use the serialize_model() method. Check the value syntax below.

{ value: <number> }

Rails.application.routes.draw do
  # MUST be declared before the mount ForestLiana::Engine.
  namespace :forest do
    post '/stats/mrr' => 'charts#mrr'
  end

  mount ForestLiana::Engine => '/forest'
end

class Forest::ChartsController < ForestLiana::ApplicationController
  def mrr
    mrr = 0

    from = Date.parse('2018-03-01').to_time(:utc).to_i
    to = Date.parse('2018-03-31').to_time(:utc).to_i

    Stripe::Charge.list({
      created: { gte: from, lte: to },
      limit: 100
    }).each do |charge|
      mrr += charge.amount / 100
    end

    stat = ForestLiana::Model::Stat.new({ value: mrr })
    render json: serialize_model(stat)
  end
end

Repartition API-based Chart

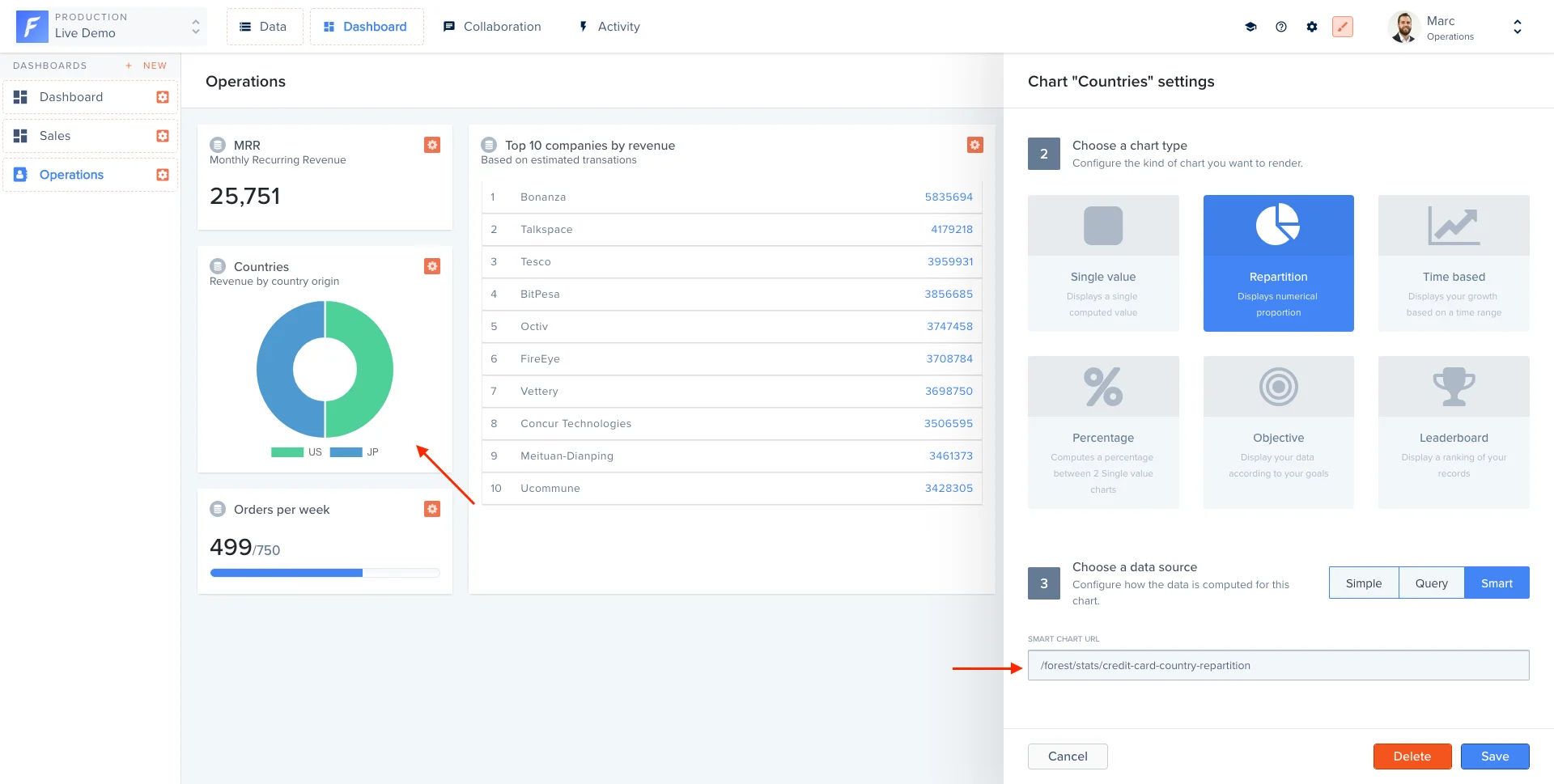

On our Live Demo, we have a Charges repartition chart which shows a repartition chart distributed by credit card country. This chart queries the Stripe API to get all charges made in the current month (in March for this example) and check the credit card country.

SQL
Mongoose
Rails
Laravel

When serializing the data, we use the Liana.StatSerializer() serializer. Check the value syntax below.

{
  value: [{
    key: <string> ,
    value: <number>
  }, {
    key: <string> ,
    value: <number>
  }, …]
}

const _ = require('lodash');
const P = require('bluebird');
const express = require('express');
const router = express.Router();
const Liana = require('forest-express-sequelize');
const stripe = require('stripe')(process.env.STRIPE_SECRET_KEY);
const moment = require('moment');

router.post(
  '/stats/credit-card-country-repartition',
  Liana.ensureAuthenticated,
  (req, res) => {
    let repartition = [];

    let from = moment.utc('2018-03-01').unix();

    let to = moment.utc('2018-03-20').unix();

    return stripe.charges
      .list({
        created: { gte: from, lte: to },
      })
      .then((response) => {
        return P.each(response.data, (charge) => {
          let country = charge.source.country || 'Others';

          let entry = _.find(repartition, { key: country });
          if (!entry) {
            repartition.push({ key: country, value: 1 });
          } else {
            entry.value++;
          }
        });
      })
      .then(() => {
        let json = new Liana.StatSerializer({
          value: repartition,
        }).perform();

        res.send(json);
      });
  }
);

module.exports = router;

When serializing the data, we use the Liana.StatSerializer() serializer. Check the value syntax below.

{
  value: [{
    key: <string> ,
    value: <number>
  }, {
    key: <string> ,
    value: <number>
  }, …]
}

const _ = require('lodash');
const P = require('bluebird');
const express = require('express');
const router = express.Router();
const Liana = require('forest-express-mongoose');
const stripe = require('stripe')(process.env.STRIPE_SECRET_KEY);
const moment = require('moment');

router.post(
  '/stats/credit-card-country-repartition',
  Liana.ensureAuthenticated,
  (req, res) => {
    let repartition = [];

    let from = moment.utc('2018-03-01').unix();

    let to = moment.utc('2018-03-20').unix();

    return stripe.charges
      .list({
        created: { gte: from, lte: to },
      })
      .then((response) => {
        return P.each(response.data, (charge) => {
          console.log(charge.source);
          let country = charge.source.country || 'Others';

          let entry = _.find(repartition, { key: country });
          if (!entry) {
            repartition.push({ key: country, value: 1 });
          } else {
            entry.value++;
          }
        });
      })
      .then(() => {
        let json = new Liana.StatSerializer({
          value: repartition,
        }).perform();

        res.send(json);
      });
  }
);

module.exports = router;

When serializing the data, we use the serialize_model() method. Check the value syntax below.

{
  value: [{
    key: <string> ,
    value: <number>
  }, {
    key: <string> ,
    value: <number>
  }, …]
}

Rails.application.routes.draw do
  # MUST be declared before the mount ForestLiana::Engine.
  namespace :forest do
    post '/stats/credit-card-country-repartition' => 'charts#credit_card_country_repartition'
  end

  mount ForestLiana::Engine => '/forest'
end

class Forest::ChartsController < ForestLiana::ApplicationController
  def credit_card_country_repartition
    repartition = []

    from = Date.parse('2018-03-01').to_time(:utc).to_i
    to = Date.parse('2018-03-20').to_time(:utc).to_i

    Stripe::Charge.list({
      created: { gte: from, lte: to },
      limit: 100
    }).each do |charge|
      country = charge.source.country || 'Others'

      entry = repartition.find { |e| e[:key] == country }
      if !entry
        repartition << { key: country, value: 1 }
      else
        ++entry[:value]
      end
    end

    stat = ForestLiana::Model::Stat.new({ value: repartition })
    render json: serialize_model(stat)
  end
end

{
  value: [{
    key: <string> ,
    value: <number>
  }, {
    key: <string> ,
    value: <number>
  }, …]
}

Time-based API-based Chart

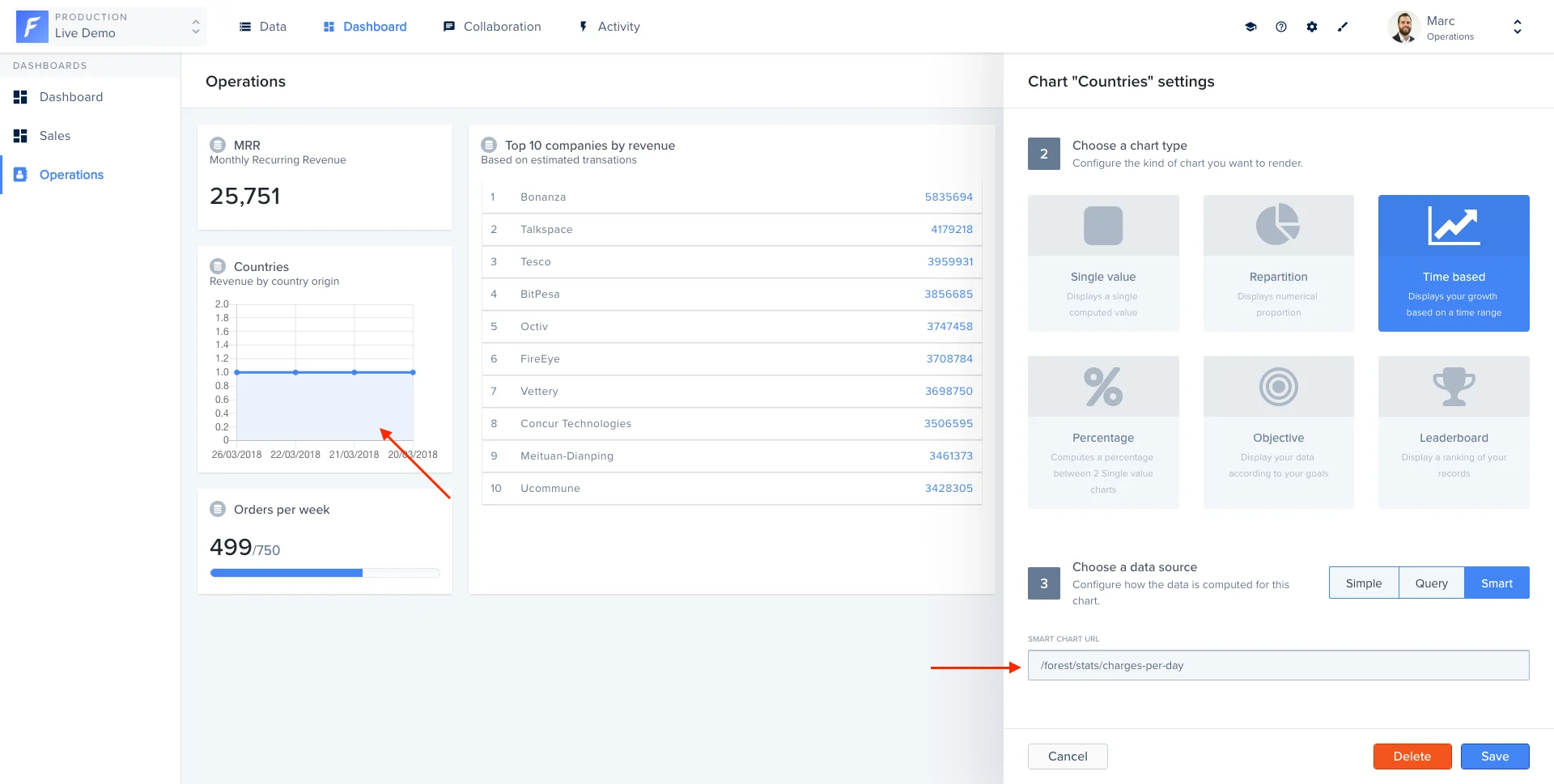

On our Live Demo, we have a Charges time-based chart which shows the number of charges per day. This chart queries the Stripe API to get all charges made in the current month (in March for this example) and group data by day.

SQL
Mongoose
Rails
Laravel

When serializing the data, we use the Liana.StatSerializer() serializer. Check the value syntax below.

{
  value: [{
    label: <string> ,
    values: { value: <number> }
  }, {
    label: <string> ,
    values: { value: <number> }
  }, …]
}

const _ = require('lodash');
const P = require('bluebird');
const express = require('express');
const router = express.Router();
const Liana = require('forest-express-sequelize');
const stripe = require('stripe')(process.env.STRIPE_SECRET_KEY);
const moment = require('moment');

router.post('/stats/charges-per-day', (req, res) => {
  let values = [];

  let from = moment.utc('2018-03-01').unix();
  let to = moment.utc('2018-03-31').unix();

  return stripe.charges
    .list({
      created: { gte: from, lte: to },
    })
    .then((response) => {
      return P.each(response.data, (charge) => {
        let date = moment.unix(charge.created).startOf('day').format('LLL');

        let entry = _.find(values, { label: date });
        if (!entry) {
          values.push({ label: date, values: { value: 1 } });
        } else {
          entry.values.value++;
        }
      });
    })
    .then(() => {
      let json = new Liana.StatSerializer({
        value: values,
      }).perform();

      res.send(json);
    });
});

module.exports = router;

When serializing the data, we use the Liana.StatSerializer() serializer. Check the value syntax below.

{
  value: [{
    label: <string> ,
    values: { value: <number> }
  }, {
    label: <string> ,
    values: { value: <number> }
  }, …]
}

const _ = require('lodash');
const P = require('bluebird');
const express = require('express');
const router = express.Router();
const Liana = require('forest-express-mongoose');
const stripe = require('stripe')(process.env.STRIPE_SECRET_KEY);
const moment = require('moment');

router.post('/stats/charges-per-day', (req, res) => {
  let values = [];

  let from = moment.utc('2018-03-01').unix();
  let to = moment.utc('2018-03-31').unix();

  return stripe.charges
    .list({
      created: { gte: from, lte: to },
    })
    .then((response) => {
      return P.each(response.data, (charge) => {
        let date = moment.unix(charge.created).startOf('day').format('LLL');

        let entry = _.find(values, { label: date });
        if (!entry) {
          values.push({ label: date, values: { value: 1 } });
        } else {
          entry.values.value++;
        }
      });
    })
    .then(() => {
      let json = new Liana.StatSerializer({
        value: values,
      }).perform();

      res.send(json);
    });
});

module.exports = router;

When serializing the data, we use the serialize_model() method. Check the value syntax below.

{
  value: [{
    label: <string> ,
    values: { value: <number> }
  }, {
    label: <string> ,
    values: { value: <number> }
  }, …]
}

Rails.application.routes.draw do
  # MUST be declared before the mount ForestLiana::Engine.
  namespace :forest do
    post '/stats/charges-per-day' => 'charts#charges_per_day'
  end

  mount ForestLiana::Engine => '/forest'
end

class Forest::ChartsController < ForestLiana::ApplicationController
  def charges_per_day
    values = []

    from = Date.parse('2018-03-01').to_time(:utc).to_i
    to = Date.parse('2018-03-31').to_time(:utc).to_i

    Stripe::Charge.list({
      created: { gte: from, lte: to },
      limit: 100
    }).each do |charge|
      date = Time.at(charge.created).beginning_of_day.strftime("%d/%m/%Y")
      entry = values.find { |e| e[:label] == date }
      if !entry
        values << { label: date, values: { value: 1 } }
      else
        ++entry[:values][:value]
      end
    end

    stat = ForestLiana::Model::Stat.new({ value: values })
    render json: serialize_model(stat)
  end
end

{
  value: [{
    label: <string> ,
    values: { value: <number> }
  }, {
    label: <string> ,
    values: { value: <number> }
  }, …]
}

Objective API-based Chart

Creating an Objective Smart Chart means you’ll be fetching your data from an external API endpoint:

This endpoint must return data with the following format:

{
  value: {
    value: xxxx,
    objective: yyyy
  }
}

Here’s how you could implement it:

SQL
Mongoose
Rails
Laravel

​// [...]
const Liana = require('forest-express-sequelize');
​
// [...]
​
router.post('/stats/some-objective', (req, res) => {
  // fetch your data here (a promise must be returned)
  .then(() => {
    let json = new Liana.StatSerializer({
      value: {
        value: fetchedValue,
        objective: fetchedObjective
      }
    }).perform();

    res.send(json);
  }
}

​// [...]
const Liana = require('forest-express-mongoose');
​
// [...]
​
router.post('/stats/some-objective', (req, res) => {
  // fetch your data here (a promise must be returned)
  .then(() => {
    let json = new Liana.StatSerializer({
      value: {
        value: fetchedValue,
        objective: fetchedObjective
      }
    }).perform();

    res.send(json);
  }
}

...

namespace :forest do
  post '/stats/some-objective' => 'customers#some_objective'
end

...

...

def some_objective
  # fetch your data here
  stat = ForestLiana::Model::Stat.new({
    value: {
      value: 10, # the fetched value
      objective: 678 # the fetched objective
    }
  })
  render json: serialize_model(stat)
end

...

{
  value: {
    value: xxxx,
    objective: yyyy
  }
}
